Carbon/Kevlar Natural Color
|
|

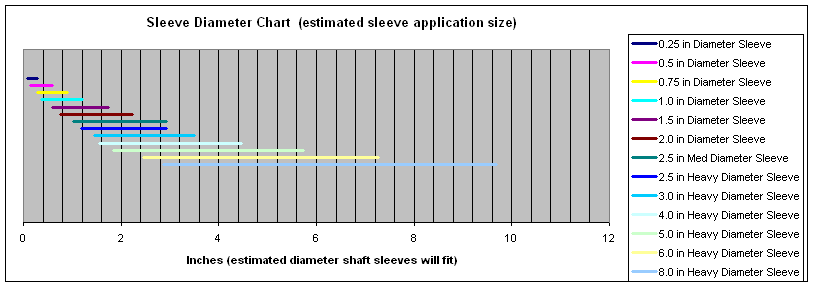

This is an example of how these sleeves can expand from their minimum to maximum application size. Note that the "length" of the sleeve increases by about 1/3 when going from the maximum "width" of the sleeve to the minimum width.
|
|
|
|
Carbon/Fiberglass Sleeving
|
100% Carbon Fiber Sleeves (top) |

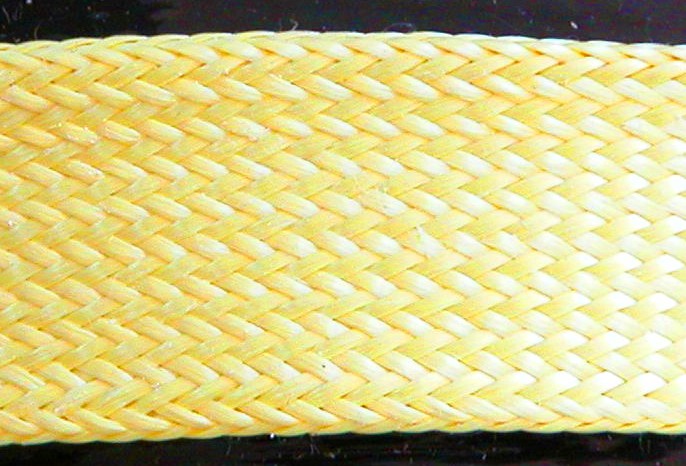

100% Kevlar Sleeves (above) |
Red& Black (above) |

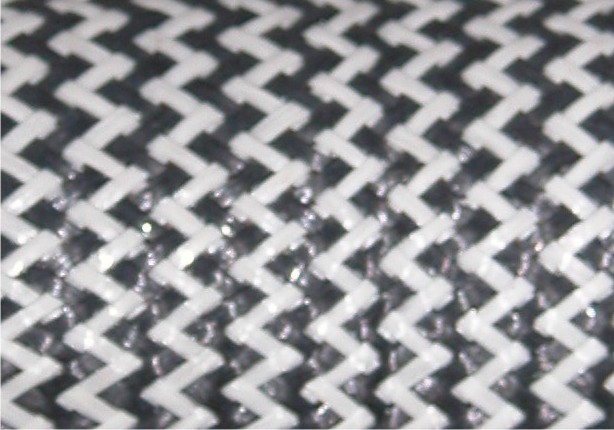

100% Fiberglass Sleeeves (above left), White Carbon/Fiberglass Sleeving (above center), Basalt (above right) |
|
|
Other colors are available, please contact us for more info. |
| |
Specs: |
|
|
| |
|
|

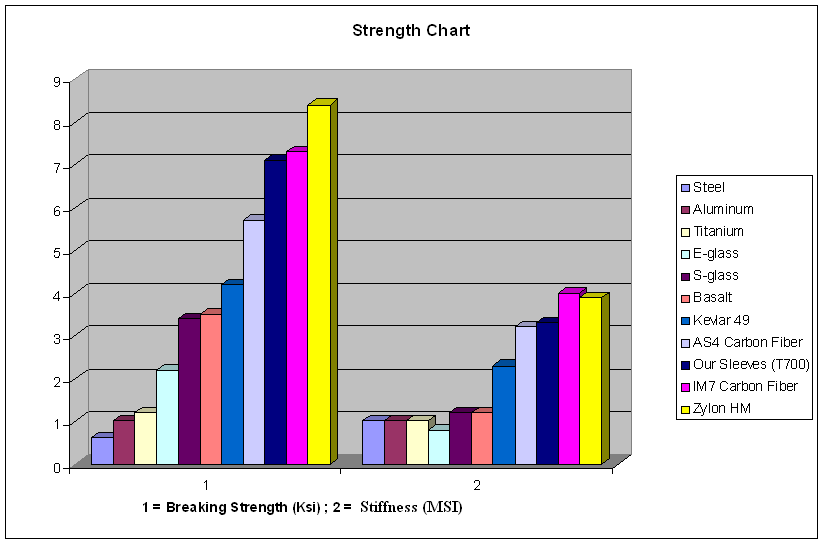

Our Carbon Sleeves are Aerospace grade
34Msi Modulus (Stiffness)
640ksi Tinsile Strength (Breaking Stength)
|
| |
|
|
100% Carbon Fiber Sleeve Detailed Specs |
|
|
|
|
Diameter (in.) |
Diameter (cm) |
Type |
Est. Diameter size from (in) |
Est. Diameter size to (in) |
Est. Circum from (in) |
Est. Circum to (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
0.25 |
0.64 |
Light |
0.09 |
0.29 |
0.28 |
0.91 |
0.013 |
0.33 |
8.3 |
281 |
265.2 |
0.5 |
1.28 |
Light |
0.14 |
0.6 |
0.45 |
1.8 |
0.013 |
0.33 |
8.3 |
281 |
132.6 |
0.75 |
1.91 |
Light |
0.29 |
0.9 |
0.9 |
2.8 |
0.013 |
0.33 |
8.9 |
301 |
82.9 |
1 |
2.55 |
Light |
0.36 |
1.2 |
1.14 |
3.77 |
0.012 |
0.3 |
8.3 |
281 |
66.3 |
1.5 |
3.82 |
Light |
0.6 |
1.75 |
1.9 |
5.5 |
0.013 |
0.33 |
8.3 |
281 |
44.2 |
1.5 |
3.82 |
Heavy |
0.76 |
1.75 |
2.4 |
5.5 |
0.030 |
0.76 |
19.9 |
675 |
18.4 |
2 |
5.09 |
Light |
0.76 |
2.23 |
2.4 |
7 |
0.011 |
0.28 |
7.5 |
254 |
36.8 |
2.5 |
6.36 |
Medium |
1.02 |
2.93 |
3.2 |
9.2 |
0.018 |
0.46 |
11.9 |
403 |
18.4 |
2.5 |
6.36 |
Heavy |
1.18 |
2.93 |
3.7 |
9.2 |
0.03 |
0.76 |
19.9 |
674 |
11 |
3 |
7.63 |
Heavy |
1.46 |
3.5 |
4.6 |
11 |
0.03 |
0.76 |
19.9 |
674 |
9.2 |
4 |
10.17 |
Heavy |
1.56 |
4.46 |
4.9 |
14 |
0.022 |
0.56 |
15.1 |
511 |
9.1 |
5 |
12.71 |
Heavy |
1.85 |
5.73 |
5.8 |
18 |
0.021 |
0.53 |
14.4 |
488 |
7.6 |
6 |
15.25 |
Heavy |
2.45 |
7.26 |
7.7 |
22.8 |
0.021 |
0.53 |
14.5 |
491 |
6.3 |
8 |
20.33 |
Heavy |
2.86 |
9.68 |
9 |
30.4 |
0.021 |
0.53 |
14.2 |
481 |
4.8 |
10 |
25.41 |
Heavy |
3.82 |
12.70 |
12 |
47 |
0.02 |
0.51 |
14.1 |
477 |
3.9 |
12 |
30.49 |
Heavy |
3.98 |
14.00 |
12.5 |
48 |
0.02 |
0.51 |
13.9 |
471 |
3.3 |
|
|
|
|
| |
|
|
50% Carbon Fiber 50% Kevlar Sleeve Detailed Specs |
Please see carbon above and Kevlar below for fiber specs |
| Diameter (in.) |
Diameter (cm) |
|
Type
|
Est. Diameter size from (in) |
Est. Diameter size to (in) |
Est. Circum from (in) |
Est. Circum to (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
| 0.5 |
1.28 |
|
Light |
0.14 |
0.6 |
0.45 |
1.8 |
0.012 |
0.3 |
7.5 |
254 |
146.8 |
| 1 |
2.55 |
|
Light |
0.36 |
1.2 |
1.14 |
3 |
0.012 |
0.3 |
7.5 |
254 |
73.4 |
| 1.5 |
3.82 |
|
Light |
0.6 |
1.75 |
1.2 |
5 |
0.012 |
0.3 |
7.5 |
254 |
48.9 |
| 2 |
5.09 |
|
Light |
0.76 |
2.23 |
2.4 |
7 |
0.011 |
0.28 |
6.7 |
227 |
40.8 |
| 2.5 |
6.36 |
|
Medium |
1.02 |
2.93 |
3.2 |
9.2 |
0.018 |
0.46 |
10.8 |
366 |
20.4 |
| 3 |
7.63 |
|
Medium |
1.46 |
3.5 |
4.6 |
11 |
0.03 |
0.76 |
10.7 |
362 |
17.1 |
|
|
|
| |
|
|
| |
50% Carbon Fiber 50% Fiberglass (Eglass) Sleeve Detailed Specs |
|
Please see carbon & fiberglass below for specs
|
|
| Diameter (in.) |
Diameter (cm) |
|
Type
|
Est. Diameter size from (in) |
Est. Diameter size to (in) |
Est. Circum from (in) |
Est. Circum to (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
| 0.5 |
1.28 |
|
Light |
0.14 |
0.6 |
0.45 |
1.8 |
0.012 |
0.3 |
10.0 |
338 |
110.5 |
| 1 |
2.55 |
|
Light |
0.36 |
1.2 |
1.14 |
3 |
0.012 |
0.3 |
10.0 |
338 |
55.2 |
| 1.5 |
3.82 |
|
Light |
0.6 |
1.75 |
1.2 |
5 |
0.012 |
0.3 |
10.0 |
338 |
36.8 |
| 2 |
5.09 |
|
Light |
0.76 |
2.23 |
2.4 |
7 |
0.011 |
0.28 |
9.0 |
304 |
30.7 |
| 2.5 |
6.36 |
|
Medium |
1.02 |
2.93 |
3.2 |
9.2 |
0.018 |
0.46 |
14.3 |
485 |
14.3 |
| 3 |
7.63 |
|
Medium |
1.46 |
3.5 |
4.6 |
11 |
0.03 |
0.76 |
14.2 |
483 |
14.2 |
| 4 |
10.16 |
|
Light |
1.5 |
4.9 |
4.8 |
15.4 |
0.010 |
0.25 |
8.4 |
284 |
16.2 |
|
|
| |
Note: Colored sleeves are stiffer than natural sleeves and are approx 15% weaker than the natural colored product. |
|
| |
|
|
100% Kevlar (Aramid) Sleeve Detailed Specs |
Kevlar 49 or Twaron 2200 ("generic" Kevlar) is used
| Material |
|
Kevlar® 49 |
Twaron® 2200 |
| Type |
|
965 |
1610 |
| Linear Density |
den |
1420 |
1548 |
| |
dtex |
1578 |
1720 |
| Tenacity |
gpd |
24 |
24 |
| |
MPa |
3050 |
3017 |
| Breaking Strength |
lbs |
75 |
81 |
| Modulus |
GPa |
119 |
105 |
| Elongation at Break |
(%) |
2.45 |
2.7 |
|
| Diameter (in.) |
Diameter (cm) |
Type
|
Est. Diameter size From (in) |
Est. Diameter size To (in) |
Est. Circum From (in) |
Est. Circum To (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
| 0.25 |
0.64 |
Light |
0.09 |
0.3 |
0.28 |
0.91 |
0.012 |
0.3 |
6.6 |
223 |
333.5 |
| 0.5 |
1.28 |
Light |
0.14 |
0.6 |
0.45 |
1.8 |
0.012 |
0.3 |
6.6 |
223 |
166.7 |
| 0.75 |
1.91 |
Light |
0.29 |
0.9 |
0.9 |
2.4 |
0.011 |
0.28 |
6.2 |
210 |
119.1 |
| 1 |
2.55 |
Light |
0.36 |
1.2 |
1.14 |
3 |
0.012 |
0.3 |
6.6 |
223 |
83.4 |
| 1.5 |
3.82 |
Light |
0.6 |
1.75 |
1.2 |
5 |
0.012 |
0.3 |
6.6 |
223 |
55.6 |
| 2 |
5.09 |
Light |
0.76 |
2.23 |
2.4 |
7 |
0.011 |
0.28 |
5.9 |
200 |
46.3 |
| 2.5 |
6.63 |
Med |
1.02 |
2.93 |
3.2 |
9.2 |
0.018 |
0.46 |
9.5 |
322 |
23.2 |
| 3 |
7.63 |
Heavy |
1.46 |
3.5 |
4.6 |
11 |
0.029 |
0.74 |
15.8 |
535 |
11.6 |
|
|
|
| |
|
|
100% Fiberglass Sleeve Detailed Specs |
Fiberglass is Eglass |
| Diameter (in.) |
Diameter (cm) |
Type
|
Est. Diameter size from (in) |
Est. Diameter size to (in) |
Est. Circum from (in) |
Est. Circum to (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
| 0.25 |
0.64 |
Light |
0.09 |
0.29 |
0.28 |
0.91 |
0.012 |
0.3 |
11.5 |
389 |
190.9
|
| 0.5 |
1.28 |
Light |
0.14 |
0.6 |
0.45 |
1.8 |
0.012 |
0.3 |
11.5 |
389 |
95.5
|
| 0.5 |
1.28 |
Heavy |
0.19 |
0.54 |
0.60 |
1.7 |
0.028 |
0.71 |
27.7 |
938 |
23.9
|
| 0.75 |
1.91 |
Light |
0.29 |
0.9 |
0.90 |
2.4 |
0.013 |
0.33 |
12.3 |
416 |
59.7
|
| 1 |
2.55 |
Light |
0.36 |
1.2 |
1.14 |
3 |
0.012 |
0.3 |
11.5 |
389 |
47.7
|
| 1 |
2.55 |
Heavy |
0.51 |
1.1 |
1.6 |
3 |
0.031 |
0.79 |
30.0 |
10.16 |
18.4 |
| 2 |
5.09 |
Light |
0.76 |
2.23 |
2.4 |
7 |
0.011 |
0.28 |
10.4 |
352 |
26.5
|
| 2 |
5.09 |
Heavy |
0.83 |
2.10 |
2.6 |
7 |
0.028 |
0.71 |
27.7 |
938 |
9.9 |
| 3 |
7.63 |
Light |
1.46 |
3.5 |
4.6 |
11 |
0.011 |
0.28 |
10 |
339 |
18.4
|
| 3 |
7.63 |
Heavy |
1.53 |
3.18 |
4.8 |
10 |
0.028 |
0.71 |
27.7 |
938 |
6.6 |
| 4 |
10.17 |
Light |
1.56 |
4.46 |
4.9 |
14 |
0.011 |
0.28 |
9.8 |
332 |
14.0
|
| 4 |
10.17 |
Heavy |
1.18 |
4.14 |
5.7 |
13 |
0.026 |
0.66 |
24.8 |
840 |
5.5 |
| 5 |
12.71 |
Light |
1.85 |
5.73 |
5.8 |
18 |
0.011 |
0.28 |
9.7 |
328 |
11.4
|
| 5 |
12.71 |
Heavy |
2.16 |
5.41 |
6.8 |
17 |
0.025 |
0.64 |
24.0 |
813 |
4.6 |
| 6 |
15.25 |
Light |
2.45 |
7.26 |
7.7 |
22.8 |
0.011 |
0.28 |
9.6 |
325 |
9.5
|
| 7 |
17.79 |
Heavy |
2.83 |
8.50 |
8.9 |
26.7 |
0.023 |
0.58 |
22.4 |
758 |
3.5 |
| 9 |
22.87 |
Heavy |
3.98 |
11.0 |
12.5 |
34.5 |
0.023 |
0.58 |
21.5 |
728 |
2.8 |
|
|
|
| |
|
|
|
Basalt Sleeve Detailed Specs |
|
|
| Diameter (in.) |
Diameter (cm) |
Type
|
Est. Diameter size from (in) |
Est. Diameter size to (in) |
Est. Circum from (in) |
Est. Circum to (in) |
Thickness (in) |
Thickness (mm) |
Weight oz/yd sq |
Weight g/m sq |
Approx Ft/lb |
| 2.0 |
5.08 |
Med |
0.65 |
2.6 |
1.95 |
7.8 |
0.022 |
0.56 |
23 |
1189 |
11.9 |
| 4.0 |
10.16 |
Med |
0.91 |
5.15 |
2.85 |
16.2 |
0.011 |
0.28 |
9.9 |
336 |
15 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Sleeve Temperature Specs |
| |
Carbon Fiber |
600F |
| |
Kevlar |
250-350F |
| |
Fiberglass |
Holds 75% of tinsility at 650, softens at 1350F |
| |
Basalt |
1800F |
| |
Zylon |
1250F |
|
|
|
Please contact us for more info.
|
|
|
